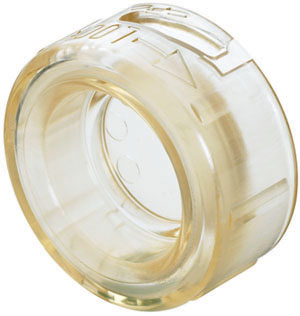

CPC MPU Connector Coupling Insert (Male) MPU32039 - MPU Sealing Insert Cap, Polysulfone (PS), Class VI

CPC MPU Connector Coupling Insert (Male) MPU32039 - MPU Sealing Insert Cap, Polysulfone (PS), Class VI

$71.10 USD
$97.40 USD $71.10 USD
Sale Sold out
Shipping calculated at checkout.
Pack Size

Polysulfone Coupling Insert Connector for Secure Single-Use Bioprocessing Fluid Transfer

The MPU's twist-to-connect design features an easy-to-use locking mechanism that guards against accidental disconnects and provides a reliable, secure connection. Featuring a 3/4" and 1" hose barb provides smooth, rapid media transfer.

Features

  • 3/4" & 1" hose barb: Facilitates rapid fill and empty of bioprocessing bags.
  • Locking Feature: Guards against accidental disconnects.
  • Sharp barb end: Secure connection to single use tubing.
  • Shrouded, leak-free & smooth, internal flow path: Protect valuable fluids and eliminate potential to contaminate fluid path.
    • x

Applications

  • Media and buffer transfer
  • Sampling
  • Filtration process
  • Harvest and collection
  • Upstream and downstream connections

Specifications

Operating Conditions (Fluid Transfer):
Temperature -40°F to 300°F (-40°C to 149°C)
Pressure Up to 35 psi, 2.41 bar
Materials:
Main Component Polysulfone (amber tint)
O-rings Silicone (clear), platinum-cured
Sterilization:
Autoclave Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.
Gamma Irradiation Up to 50 kGy irradiation
CV Value:
Cv~20.9 (301.14) max
CV values are based on gpm and psi, and lpm and bar (show in parentheses).

Documentation

MPC connectors

Videos

Videos Coming Soon!

View full details
